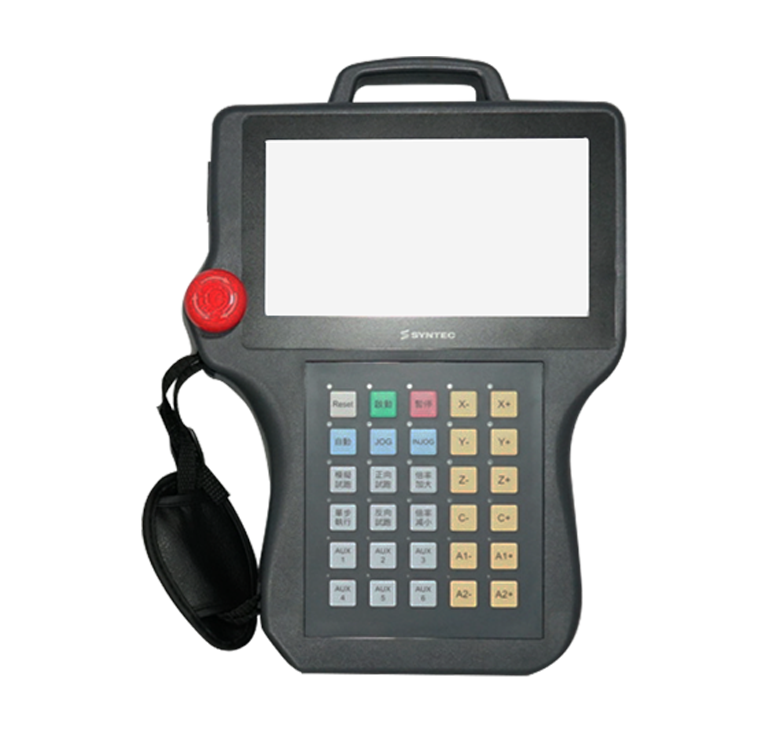

81R Handheld controller

.7" touch screen unrestricted to the distance between the controller and the machinery

.Euipped with the Syntec SRI communication port, allows free IO, AD/DA, and PWM module extension

.Function customizable industry specific membrane button

.Optional hand wheel provides operation with higher precision

.Works seamlessly with Syntec's all-in-one drivers that make parameter adjustments fast and easy

  • Product advantages
  • Product Parameter
  • File download
Features

Dedicated HCI for Delta Robots

.Supports syntax input, movement process programed for robotics
.Supports icon instruction for the movement procedure in a dialogue form. Follow the controller's instructions for parameter input
.Shortens engineer learning curve, without the need to memorize controller process command


Secondary development preserves difference

.Provide secondary development application tool, can customize PLC, HCI, and MACRO according to user needs
.Support handheld box button customization, user can decide the corresponding functions.
.Provide modulated develop process, easily complies with PLC and HCI for process development completion

Secondary development preserves difference.png

High precision movement track with smooth speed programing

.Follows CNC system's high-speed, high precision quality, supports path insertion and smooth speed programming
.Supports smooth corners to enhance pick-and-place productivity
.Built-in functional algorithm to avoid singularity
.Support linear motor Delta models, no need to self-develop algorithm

Advanced axis control with smooth path management.png

Provide handheld box for easy teaching

.Dedicated button names
.Virtual emergency stop button and safety switch
.Optional hand wheel according to needs

圖片1.pngABC_0220 copy-2 copy (1).png

Controller highly integrated with vision

.Controller shows vision image, no screen extension needed
.Vision parameters and function settings can be done on the controller
.Easy space coordinate adjustment
.Secondary development can be achieved via G/M codes


Belt tracing

.Supports non-stop machining on the conveyor belt, great for food, packaging and flow-line industries
.In coordination with vision measuring, easily achieves high productivity automation manufacturing system


Applications
Pictures



Model81R
Model81R
Support model81R-G-MPG/81R-D Delta/81R-S Scara/81R-A Artic
RemarkContains handheld controller + FC adapter board
USBUSB * 1
Network10/100 Mbps * 1
COM PortSRI *1
Server communicationM3 / EtherCAT

Max. no. of

control axes

4(8)
I/O connections (expandable)0I/0O(4096I/4096O)
Optional external handwheel

Independent handwheel

Handwheel handheld box

OptionalRemote monitoring, Vision、DA/AD、PWM
