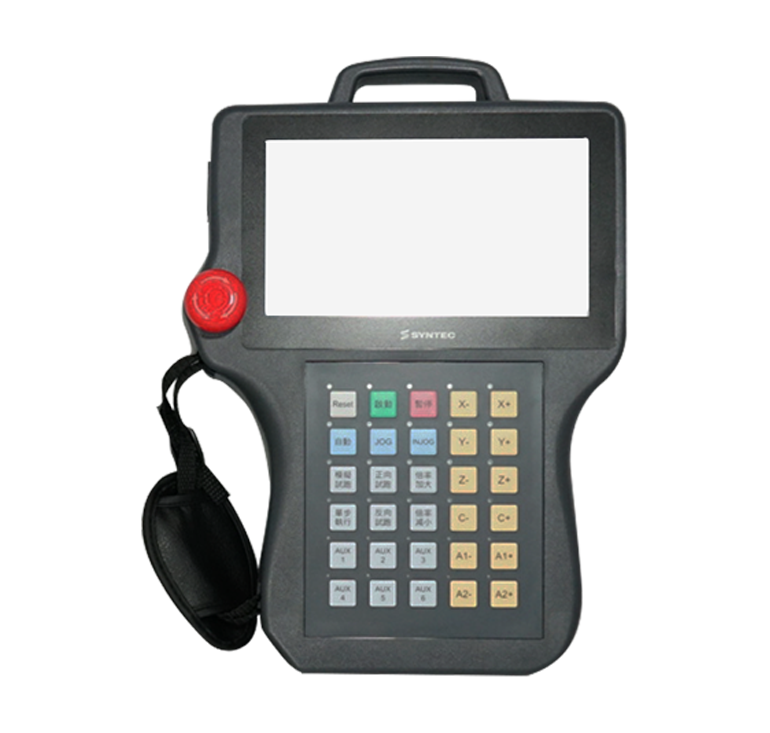

81R Handheld controller

.7" touch screen unrestricted to the distance between the controller and the machinery
.Euipped with the Syntec SRI communication port, allows free IO, AD/DA, and PWM module extension
.Function customizable industry specific membrane button
.Optional hand wheel provides operation with higher precision
.Works seamlessly with Syntec's all-in-one drivers that make parameter adjustments fast and easy

  • Product advantages
  • Product Parameter
  • File download

Dedicated stamping press arm screen

.Built-in reference point teaching, order combination process design

.Supports straight line at end points, easy for position adjustment and obstacle avoidance

.Supports hand held box and dragging demonstration, providing easier teaching

Dedicated stamping press arm screen.png

Suports multi-axis insertion

.Follows CNC system's high-speed, high precision quality, supports path insertion and smooth speed programming

.Supports smooth corners to enhance pick-and-place productivity

.Provide multi-axis straight line order and can run with insertion

Suports multi-axis insertion.jpg

Secondary development preserves difference

.Provide secondary development application tool, can customize PLC, HCI, and MACRO according to user needs

.Support handheld box button customization, user can decide the corresponding functions.

.Provide modulated develop process, easily complies with PLC and HCI for process development completion

Secondary development preserves difference.png

Provide handheld box for easy teaching

.Dedicated stamping press button names

.Virtual emergency stop button and safety switch

.Optional hand wheel according to needs

圖片1.pngABC_0220 copy-2 copy (1).png



Support model81R-G-MPG/81R-D Delta/81R-S Scara/81R-A Artic
RemarkContains handheld controller + FC adapter board
Network10/100 Mbps * 1
COM PortSRI *1
Server communicationM3 / EtherCAT

Max. no. of

control axes

I/O connections (expandable)0I/0O(4096I/4096O)
Optional external handwheel

Independent handwheel

Handwheel handheld box

OptionalRemote monitoring, Vision、DA/AD、PWM
