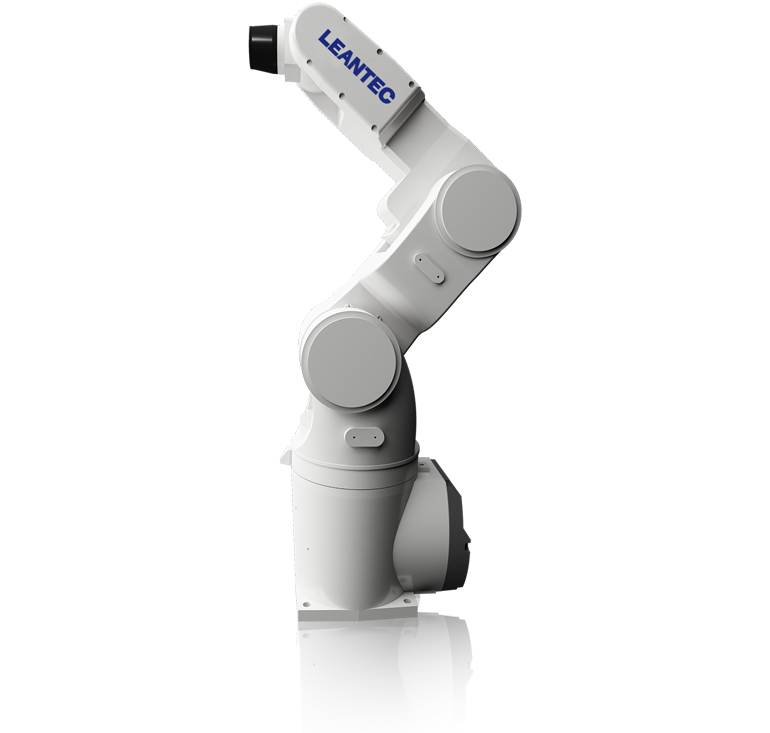

LRA705-5-6A-C

Compact and small footprint design for light payload operations.

.Equipped with 16 I/O and is easily expandable for more complex applications
.Equipped 6 I/O bus connection inside for easier cable management

  • Product advantages
  • Product Parameter
  • File download
Features

.Compact and small footprint design for light payload operations
.Equipped with 16 I/O and is easily expandable for more complex applications
.Equipped 6 I/O bus connection inside for easier cable management
.Provide 3 mounting methods:Floor, Upside-down,and  Angle mount

Applications
Assembling
Loading/Unloading
Grinding
Others
Pictures

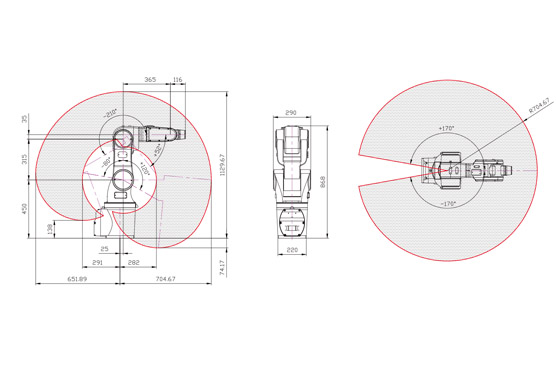

Robot Work Envelope

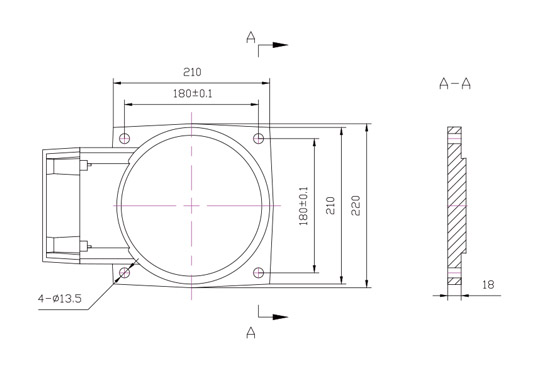

Robot Base Dimension

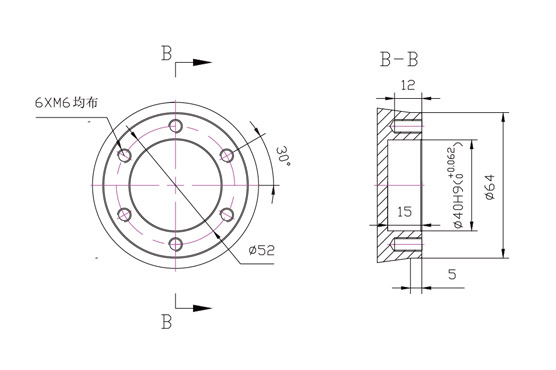

Robot Flange Dimension
Type
LRA705-5-6A-C
No. Control Axes
6
Payload( kg)
5
Max. Reach (mm)
705
Repeatability ( mm)
±0.05
Motion Range (°)
J1 axes
±170
J2 axes
+120/-80
J3 axes
+52/-210
J4 axes
±170
J5 axes
±120
J6 axes
±360
Motor Output (kw)
J1 axes
0.4
J2 axes
0.4
J3 axes
0.4
J4 axes
0.15
J5 axes
0.2
J6 axes
0.15
Max. Speed* (°/s)
J1 axes
330
J2 axes
300
J3 axes
300
J4 axes
370
J5 axes
370
J6 axes
550
Weight (kg)
≈48
Installation
Floor、Upside-down、Angle
Levels of protection
IP54
Ambient temperature / Humidity / Vibration
Ambient temperatur:0~40℃
Ambient humidity: Normally 75 %RH or less(No dew. nor frost allow)
Short term 90 %RH or less (within one month)
Vibration acceleration: 4.9 m/s2(0.5G) or less
