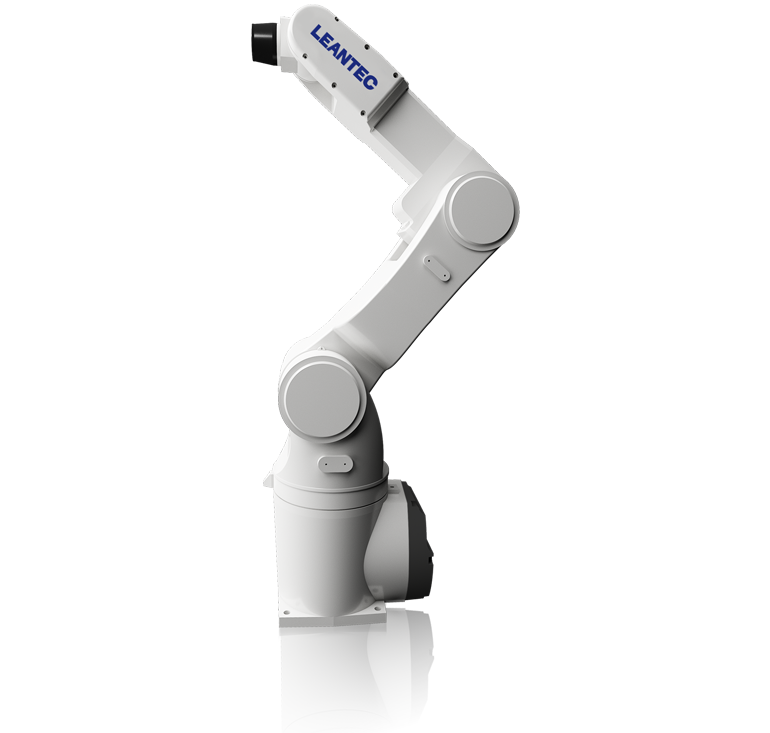

    • LRA900-5-6A-C

    ·Compact and small footprint design, suitable for light and medium payload operations. Longer reach than LRA-705-5-6A-C for wide range of applications

     ．Equipped with 16 I/O and is easily expandable for more complex applications
    ．Equipped 6 I/O bus connection inside for easier cable management

    Advisory
    • Product advantages
    • Product Parameter
    • File download
    Features

    ．Compact and small footprint design, suitable for light and medium payload operations. Longer reach than LRA-705-5-6A-C for wide range of applications
    ．Equipped with 16 I/O and is easily expandable for more complex applications
    ．Equipped 6 I/O bus connection inside for easier cable management
    ．Provide 3 mounting methods：Floor, Upside-down,and  Angle mount

    Applications
    Assembling
    Loading/Unloading
    Grinding
    Pictures

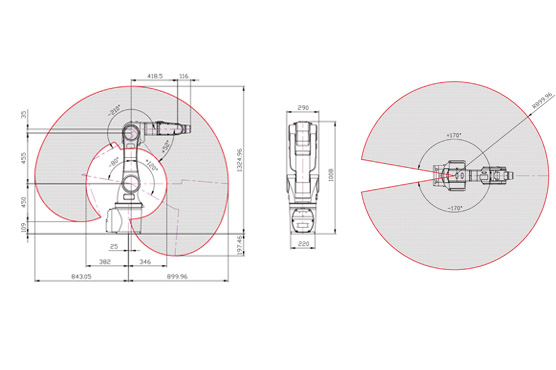

    Robot Work Envelope

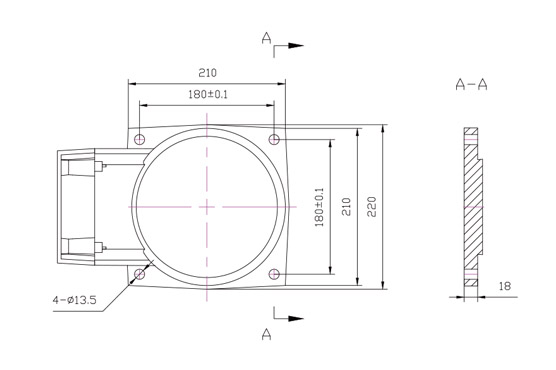

    Robot Base Dimension

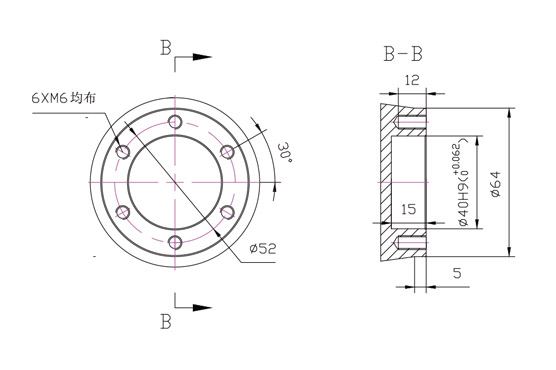

    Robot Flange Dimension
    Type
    LRA900-5-6A-C
    No. Control Axes
    6
    Payload( kg)
    5
    Max. Reach (mm)
    900
    Repeatability ( mm)
    ±0.05
    Motion Range (°)
    J1 axes
    ±170
    J2 axes
    +120/-80
    J3 axes
    +52/-210
    J4 axes
    ±170
    J5 axes
    ±120
    J6 axes
    ±360
    Motor Output (kw)
    J1 axes
    0.4
    J2 axes
    0.4
    J3 axes
    0.4
    J4 axes
    0.15
    J5 axes
    0.2
    J6 axes
    0.15
    Max. Speed* (°/s)
    J1 axes
    208
    J2 axes
    186
    J3 axes
    247
    J4 axes
    370
    J5 axes
    370
    J6 axes
    550
    Weight (kg)
    ≈52
      Installation
    Floor、Upside-down、Angle
    Levels of protection
    IP54
    Ambient temperature / Humidity / Vibration
    Ambient temperature：0～40℃
    Ambient humidity:：Normally 75%RH or lessNo dew. nor frost allow) Short term 90 %RH or less (within one month)
    Vibration acceleration: 4.9 m/s2(0.5G) or less
